Vortex Type Submersible Dewatering Agitator pumps

US-A series

US-233B-A

Construction Submersible Pumps


US-A Series Pumps, designed based upon US Series, are the vortex submersible pumps equipped with agitator.

Efficient in dewatering sand.

APPLICATIONS

Drainage out of sullage pit, mining, dredging work.

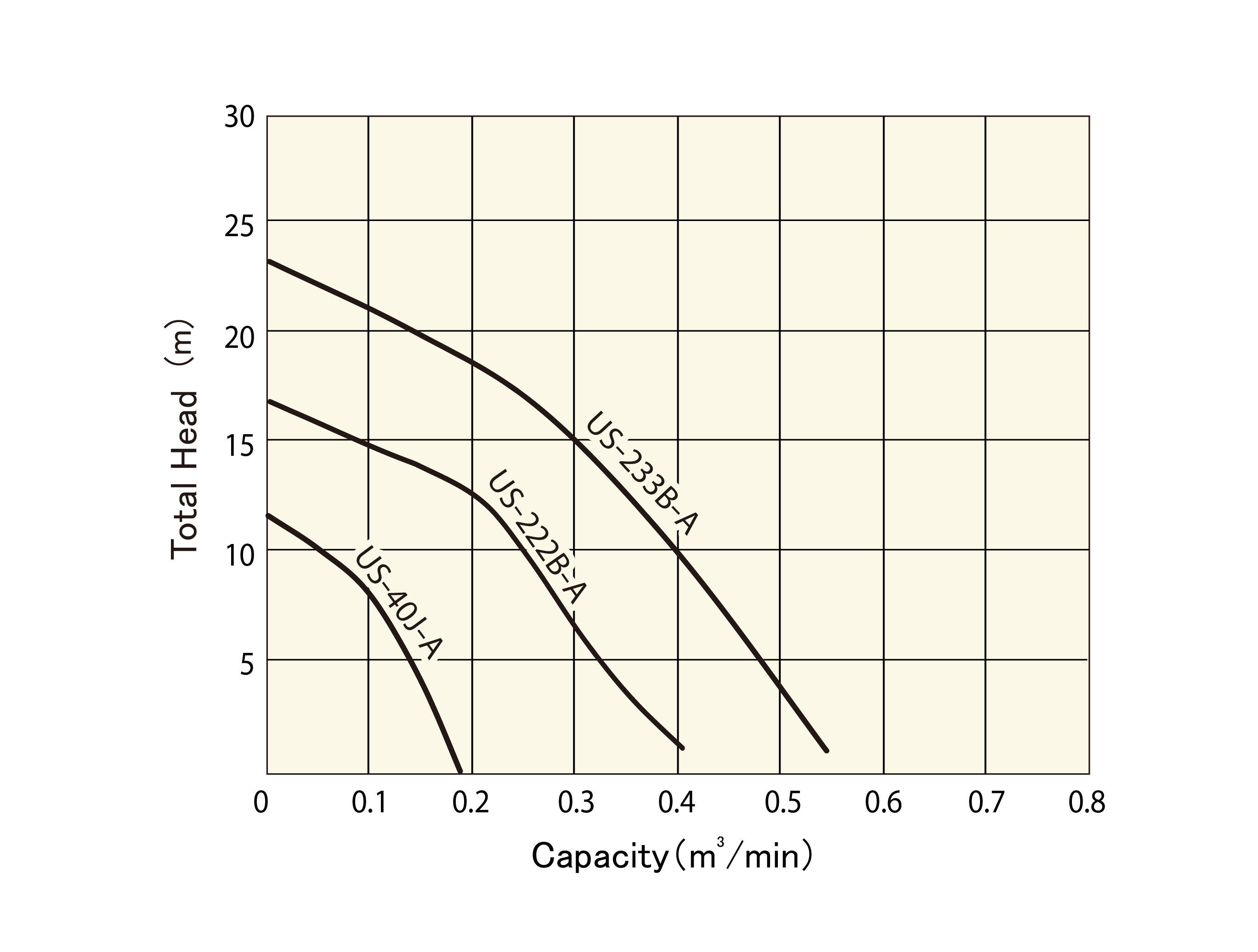

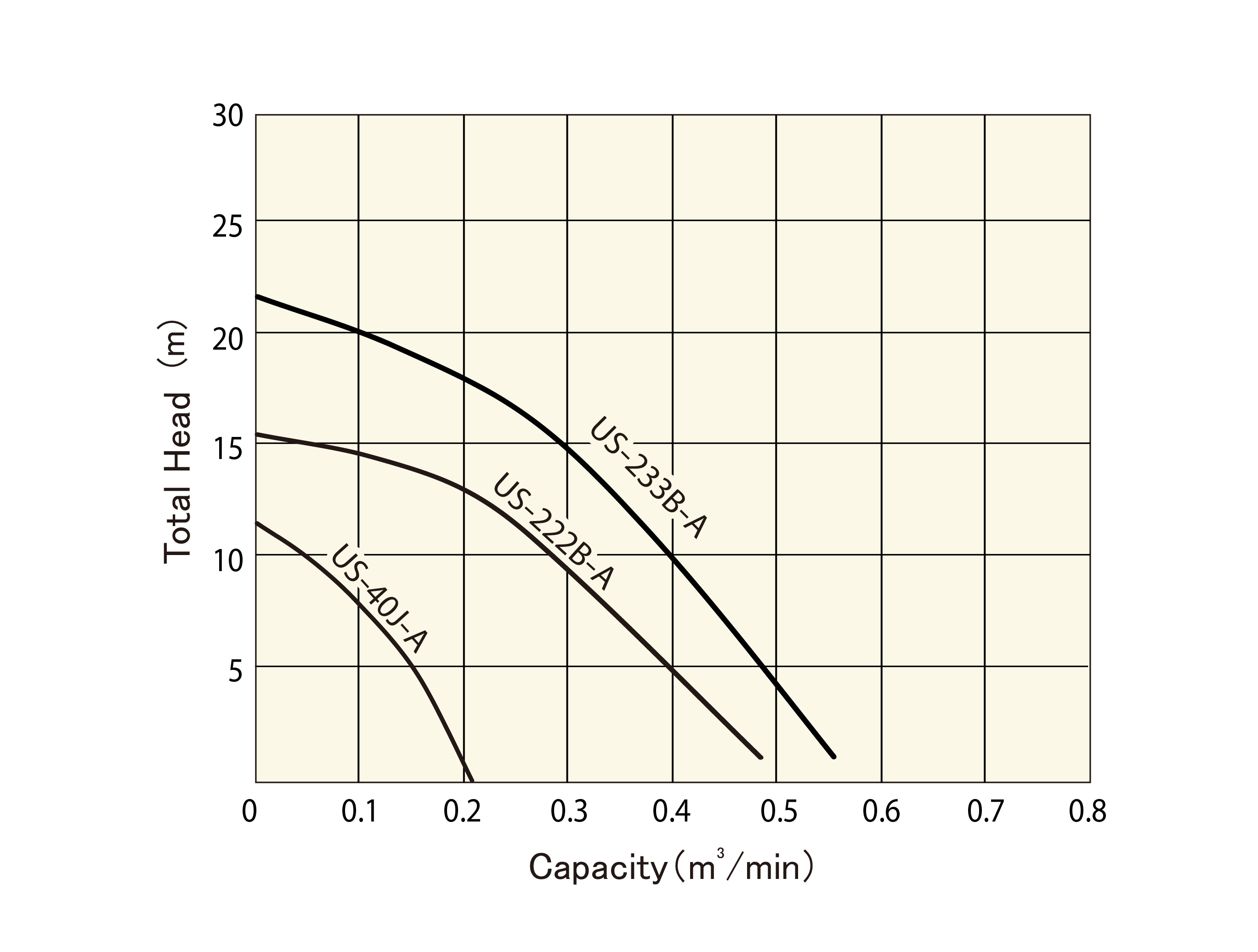

Performance curve

  • 50Hz
  • 60Hz

Specifications

Models Dis.Dia.
mm
Motor Output
kw
Total Head
m
Capacity
m³/min
Max. Solid Throu
mm
Max. Dia.
mm
Height
mm
Weight
kg
US-40J-A 50 0.4 8 0.1 7 194 370 11
US-222B-A 50 1.5 13 0.2 13 280 556 25
US-233B-A 80 2.2 10 0.4 13 293 555 29
