High-Head and Super High-Capacity Submersible Dewarering pumps

U High-Head and Super High-Capacity series

U-2508C

Construction Submersible Pumps


The models in this Series satisfy the need of customers for high capacity as well as high head in specific dewatering works.

Contact Us

APPLICATIONS

Drainage out of sumps, pits, quarries, mining, cellars, tunnels, caisson dewatering, reclaiming operations, power station constructions, waste, storm or emergency water removal, dams, harbor projects.

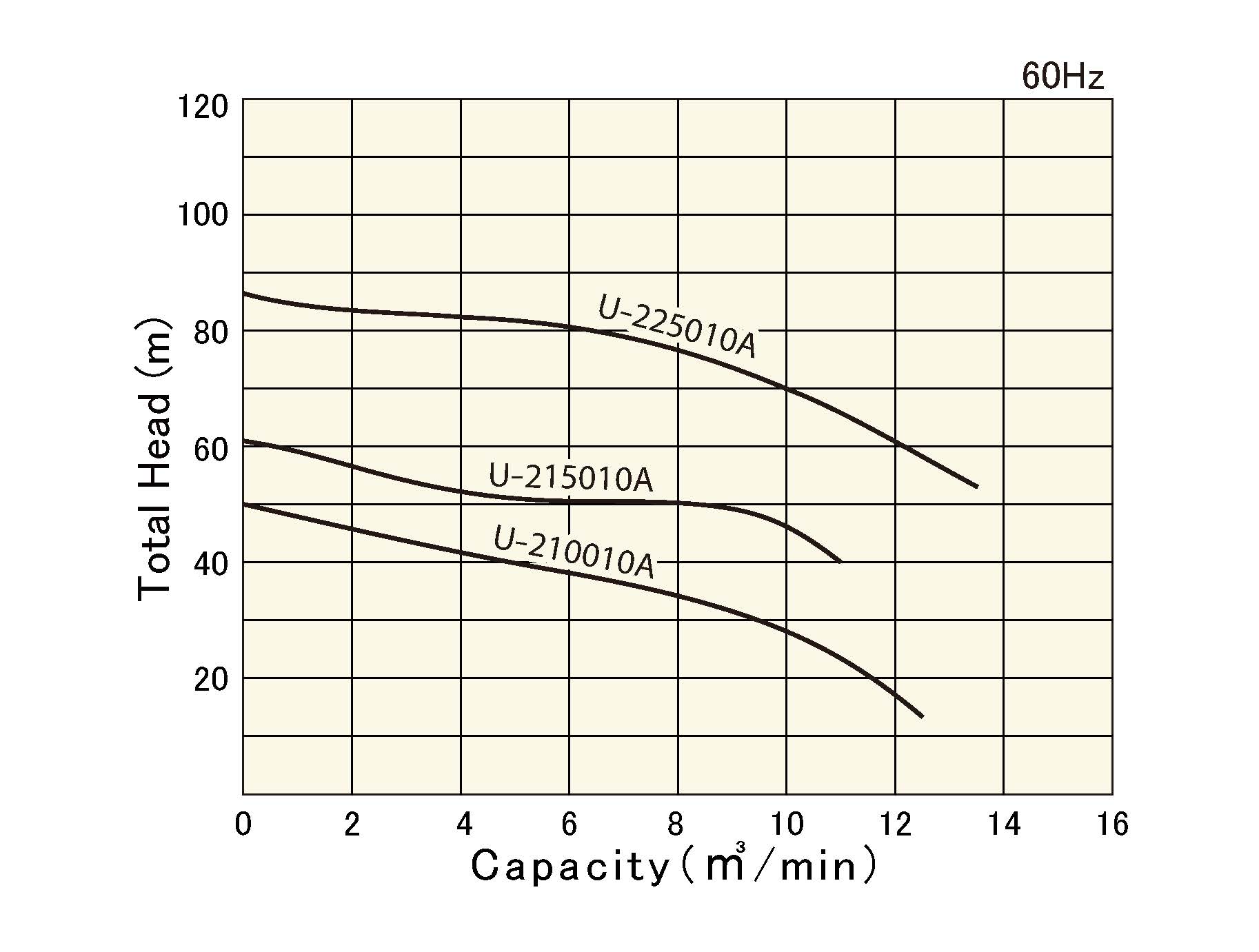

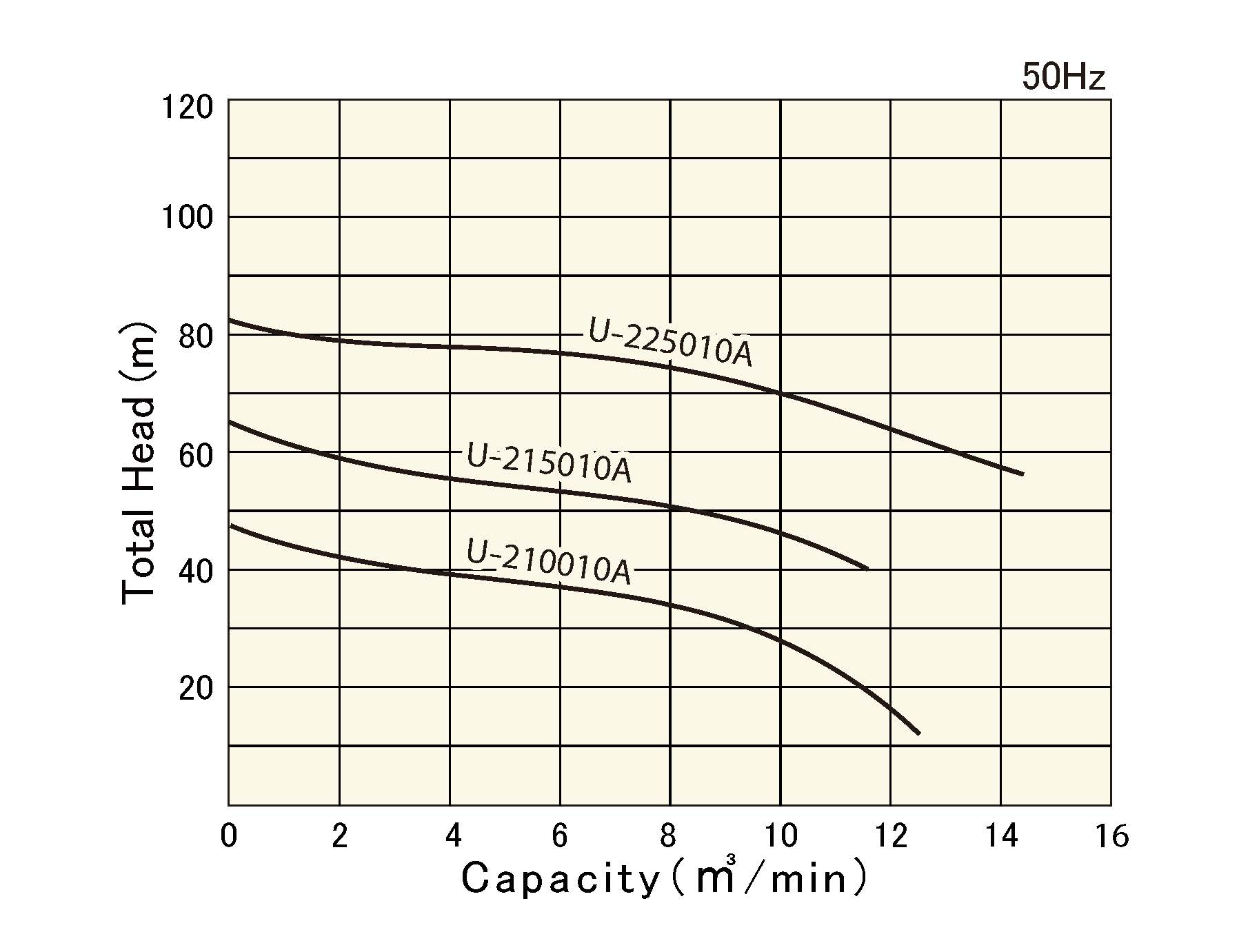

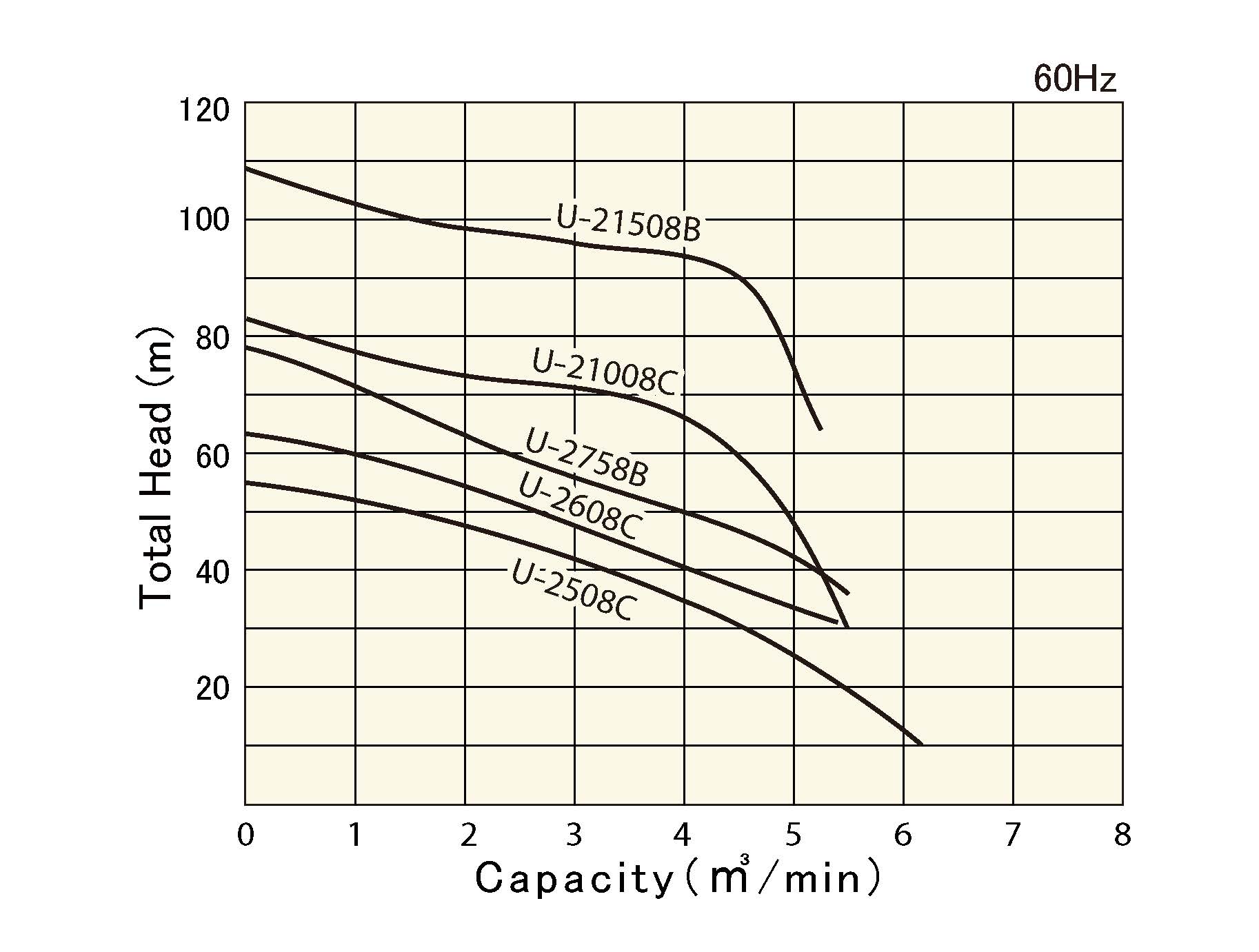

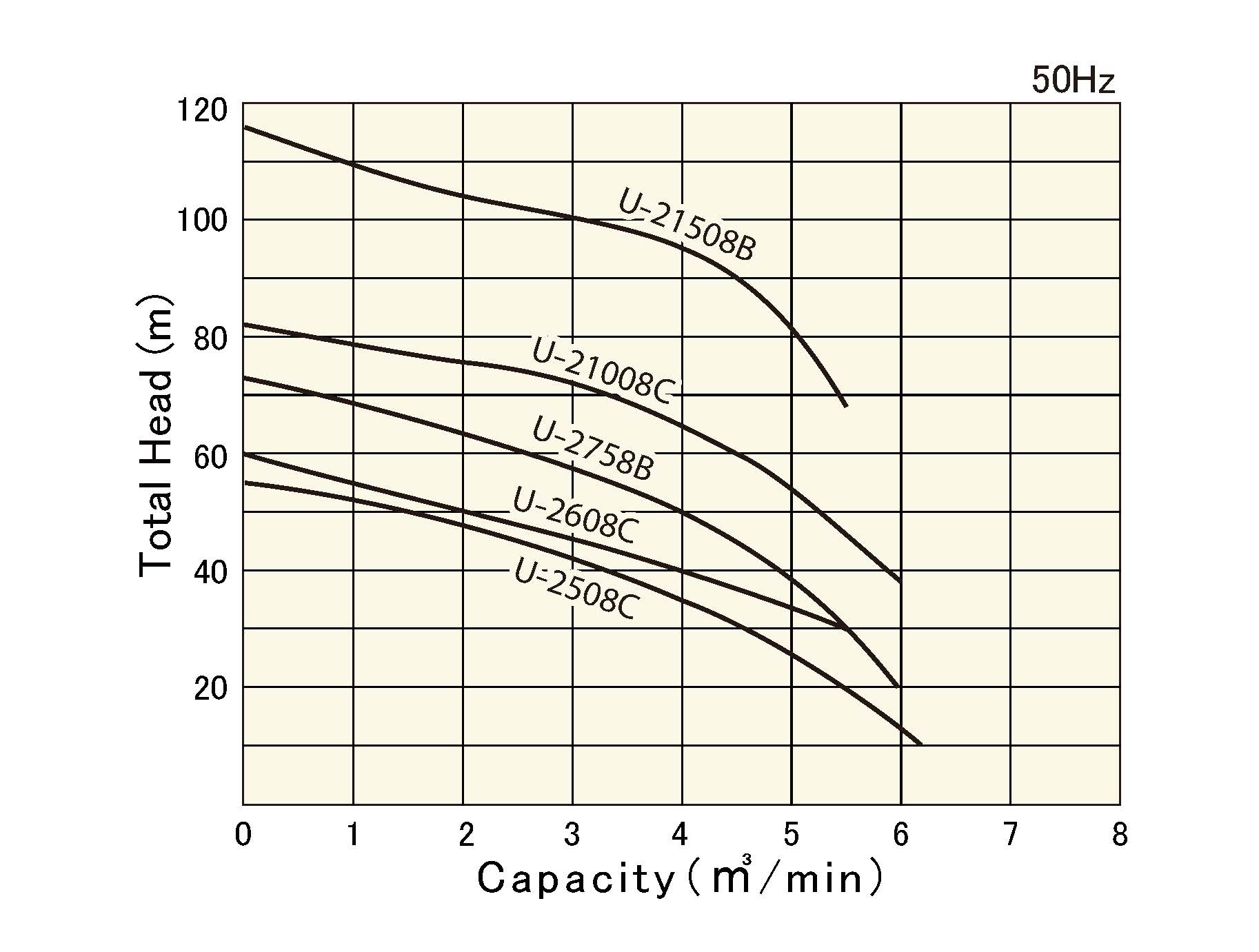

Performance curve

  • 50Hz
  • 50Hz
  • 60Hz
  • 60Hz

Specifications

Models Dis.Dia.
mm		 Motor Output
kw		 Total Head
m		 Capacity
m³/min		 Max. Dia.
mm		 Height
mm		 Weight
kg
U-2508C 200 37 35 4 540 1385 510
U-2608C 200 45 40 4 540 1315 510
U-2758B 200 55 50 4 540 1385 560
U-21008C 200 75 60 4.5 583 1550 970
U-21508B 200 110 90 4.5 583 1550 1080
U-210010A 250 75 33 8.4 680 1590 970
U-215010A 250 110 50 8.4 680 1590 1000
U-225010A 250 185 70 10 735 1963 1900
