PRODUCT

Lightweight Submersible Dewatering pump

US series

US-283

Construction Submersible Pumps


Vortex Type impeller is applied.

APPLICATIONS

Removal of water/ slurry out of trenches, underground pits, manholes, building basements, puddles, filtration, silt removal, etc.

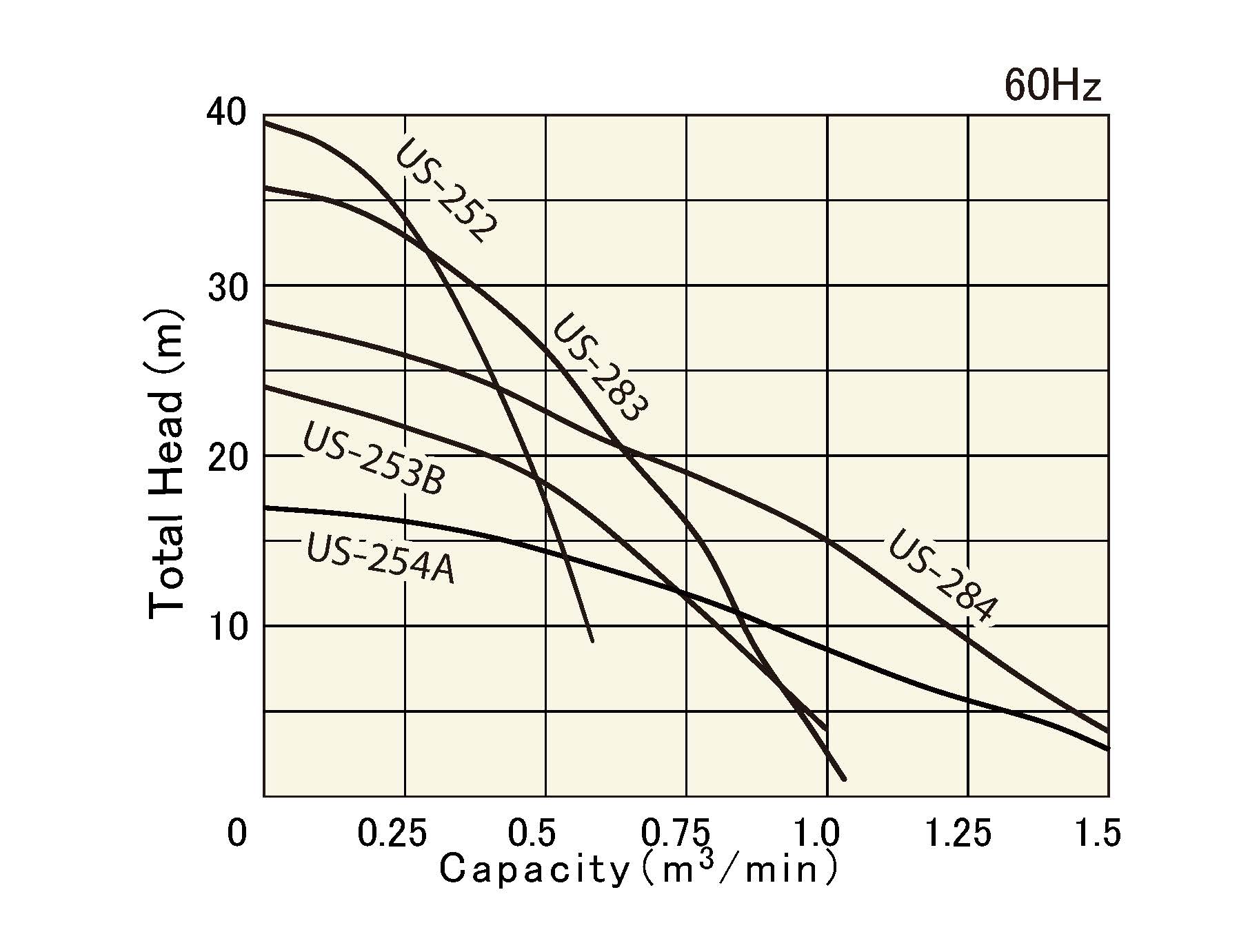

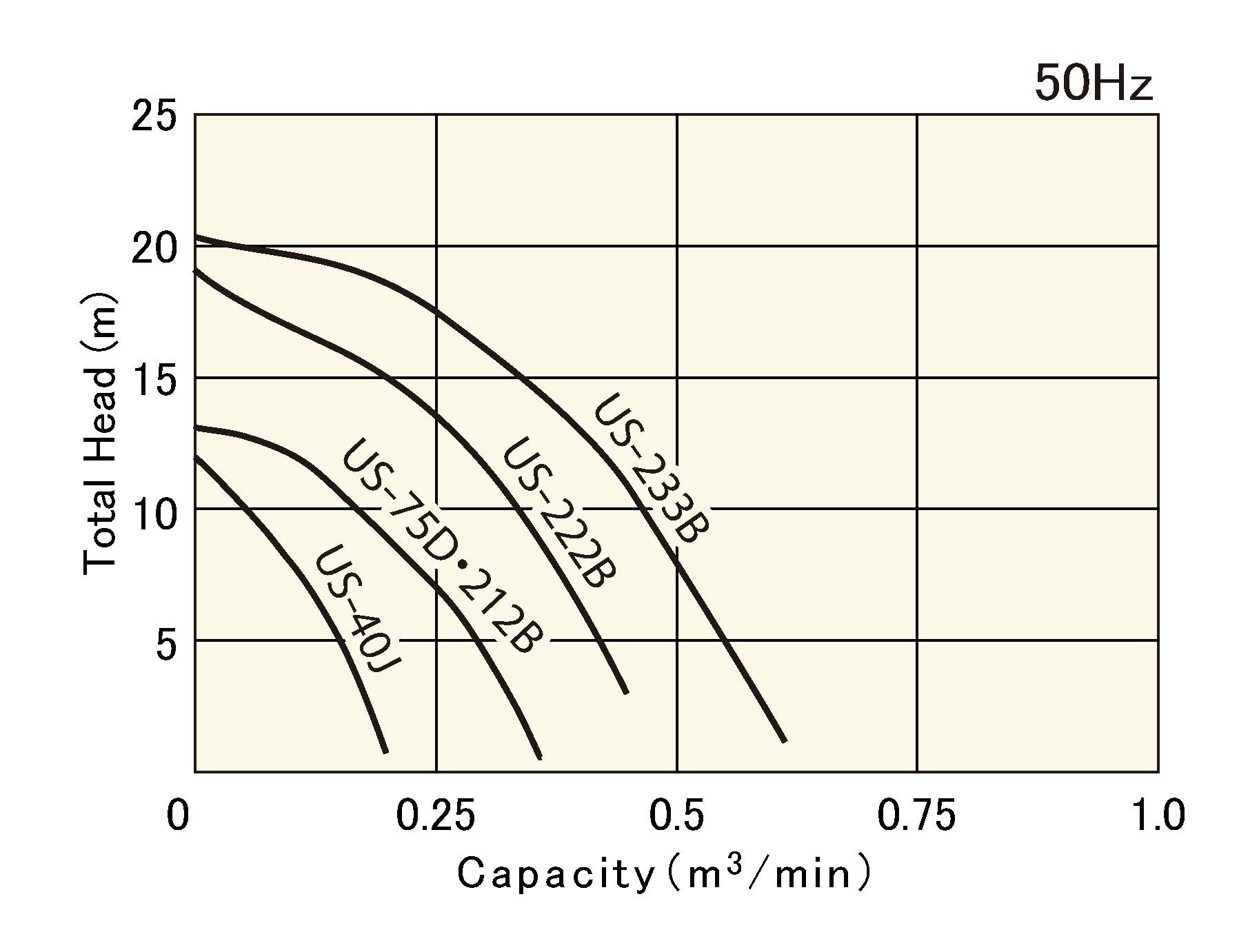

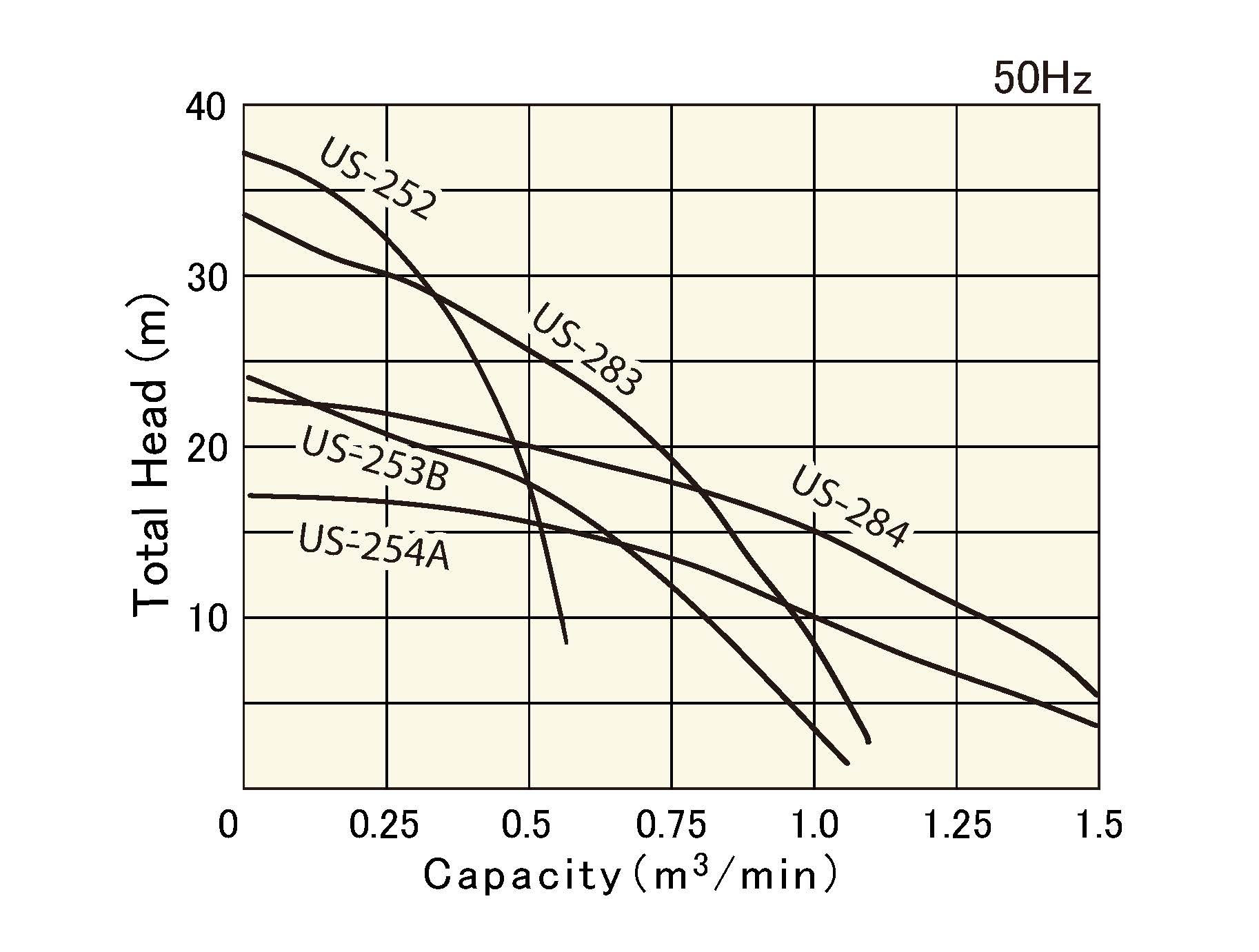

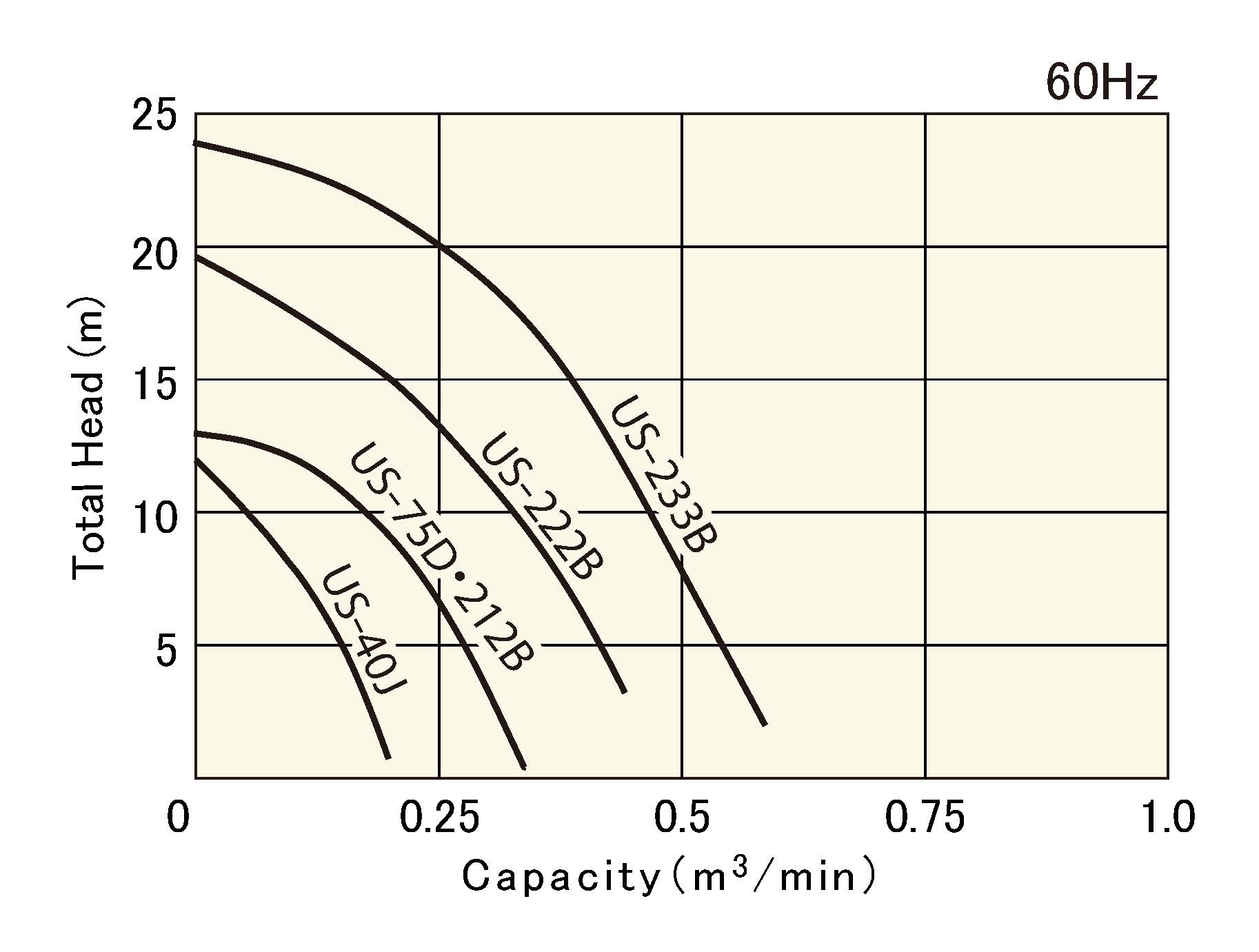

Performance curve

  • 50Hz
  • 50Hz
  • 60Hz
  • 60Hz

Specifications

Models Dis.Dia.
mm
Motor Output
kw
Total Head
m
Capacity
m³/min
Phase Max. Dia.
mm
Height
mm
Weight
kg
Note
US-40J 50 0.4 8 0.1 Single 194 364 12 Vortex Type
US-75D 50 0.75 10 0.15 Single 194 441 15.5 Vortex Type
US-212B 50 0.75 10 0.15 Three 194 441 13.6 Vortex Type
US-222B 50 1.5 15 0.2 Three 287 443 21 Vortex Type
US-233B 80 2.2 12 0.4 Three 300 443 23 Vortex Type
US-252 50 3.7 32 0.2 Three 290 622 36
US-253B 80 3.7 18 0.5 Three 290 622 36 Vortex Type
US-254A 100 3.7 9 1 Three 290 632 41
US-283 80 5.5 26 0.5 Three 290 678 54
US-284 100 5.5 15 1 Three 290 678 54
